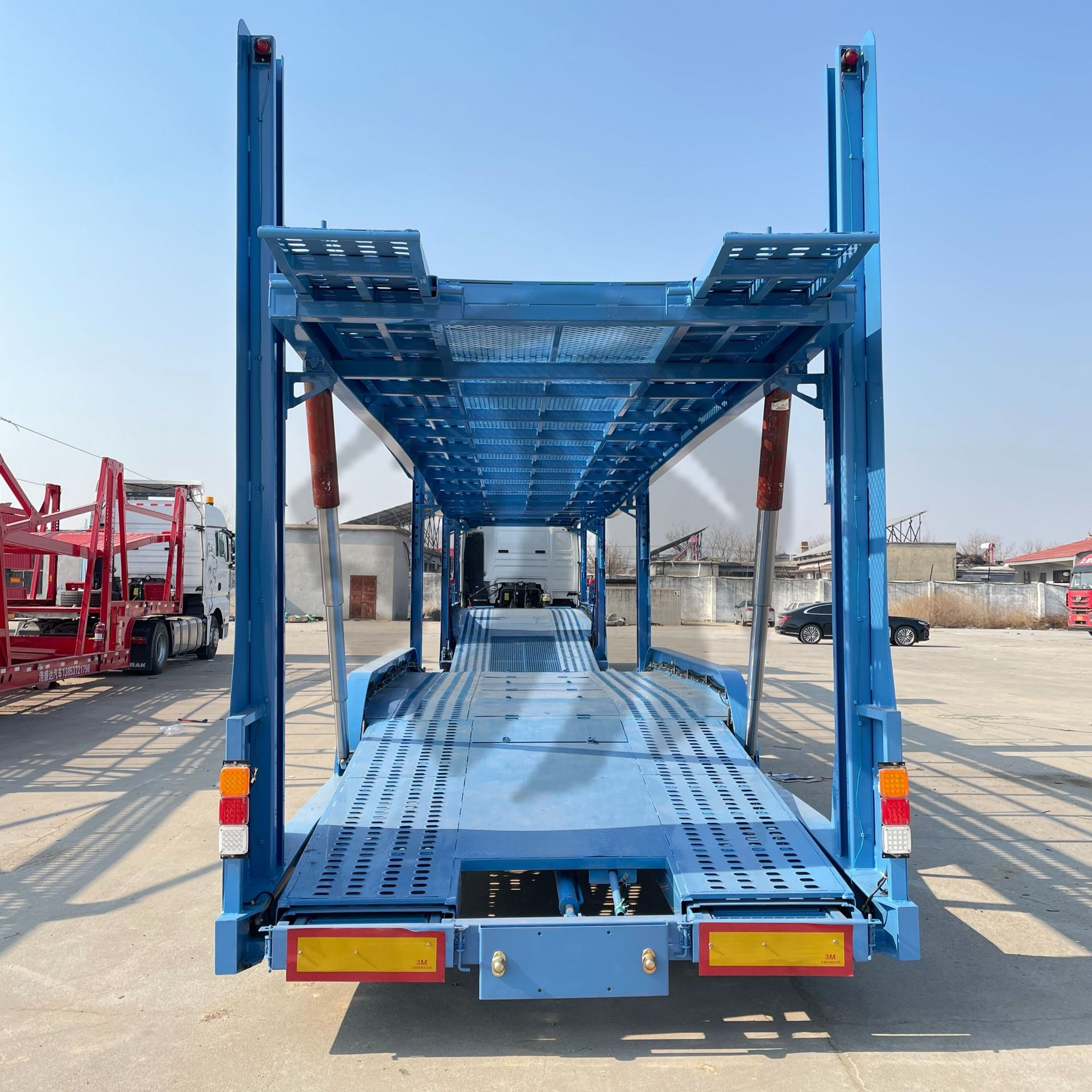

Product Name: 2 Axle Car Hauler Trailer for Sale
Function: Transport car
Overall Dimension: 13000x2500x1600mm
Loading Weight: 40tons
Main Beam: Up Plate: 14mm, Down Plate: 12mm, Middle Plate: 10mm
Side Beam: 22mm channel steel
Traction Pin: JOST Brand, optional 2” or 3.5”
King Pin: 50mm or 90mm
Axle: 13ton for each axle
Axle Brand: FUWA

Overall dimension: 16000×3000×3400mm
Loading capacity: 40~100T
Axle: 13T / 16T, FUWA / BPW
Rim: 8.0~20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: Width 90mm, Thickness 13mm, 10layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper Plate: 20mm, Middle Plate: 12mm, Lower Plate: 20mm
Material: Q345B carbon steel

Overall dimension: 16000×3000×3400mm
Loading capacity(T): 40~100T
Axle: 13T/16T, FUWA / BPW
Rim: 8.0~20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: Width 90mm, Thickness 13mm, 10layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper Plate: 20mm, Middle Plate: 12mm, Lower Plate: 20mm
Material: Q345B carbon steel
