Name: 3 Axle Skeleton Semi Trailer
SKU: 0



Home > Products > Semi Trailer > Skeleton Semi Trailer > 3 Axle Skeleton Semi Trailer

3 Axle Skeleton Semi Trailer

Category ：Skeleton Semi Trailer

Skeleton Semi-Trailer is a kind of loading and unloading equipment which is widely used in the field of logistics and transportation. It has the characteristics of stable structure, strong load capacity, easy operation, etc., and provides reliable support for the fast and efficient transportation of goods.

Product Display

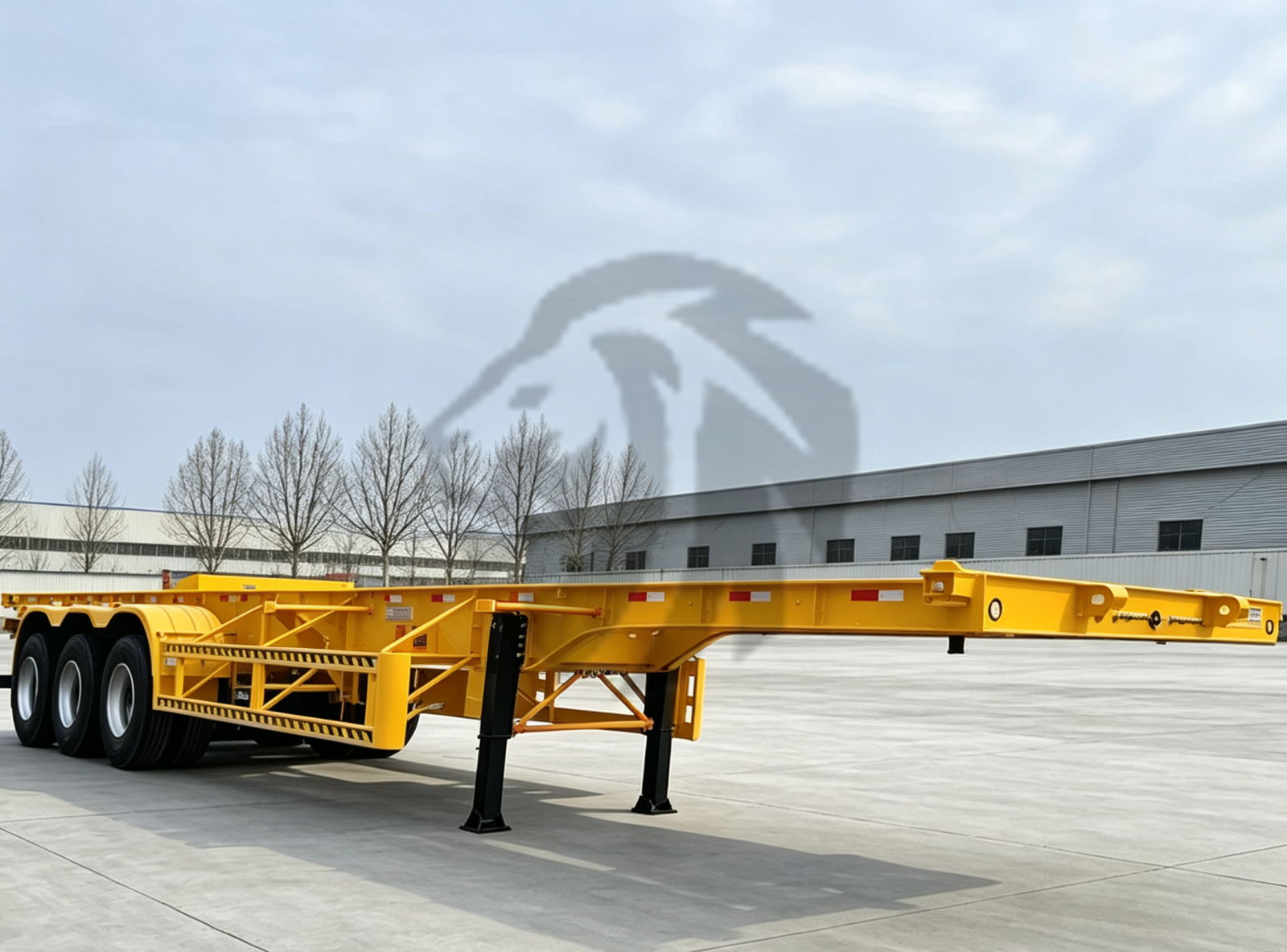

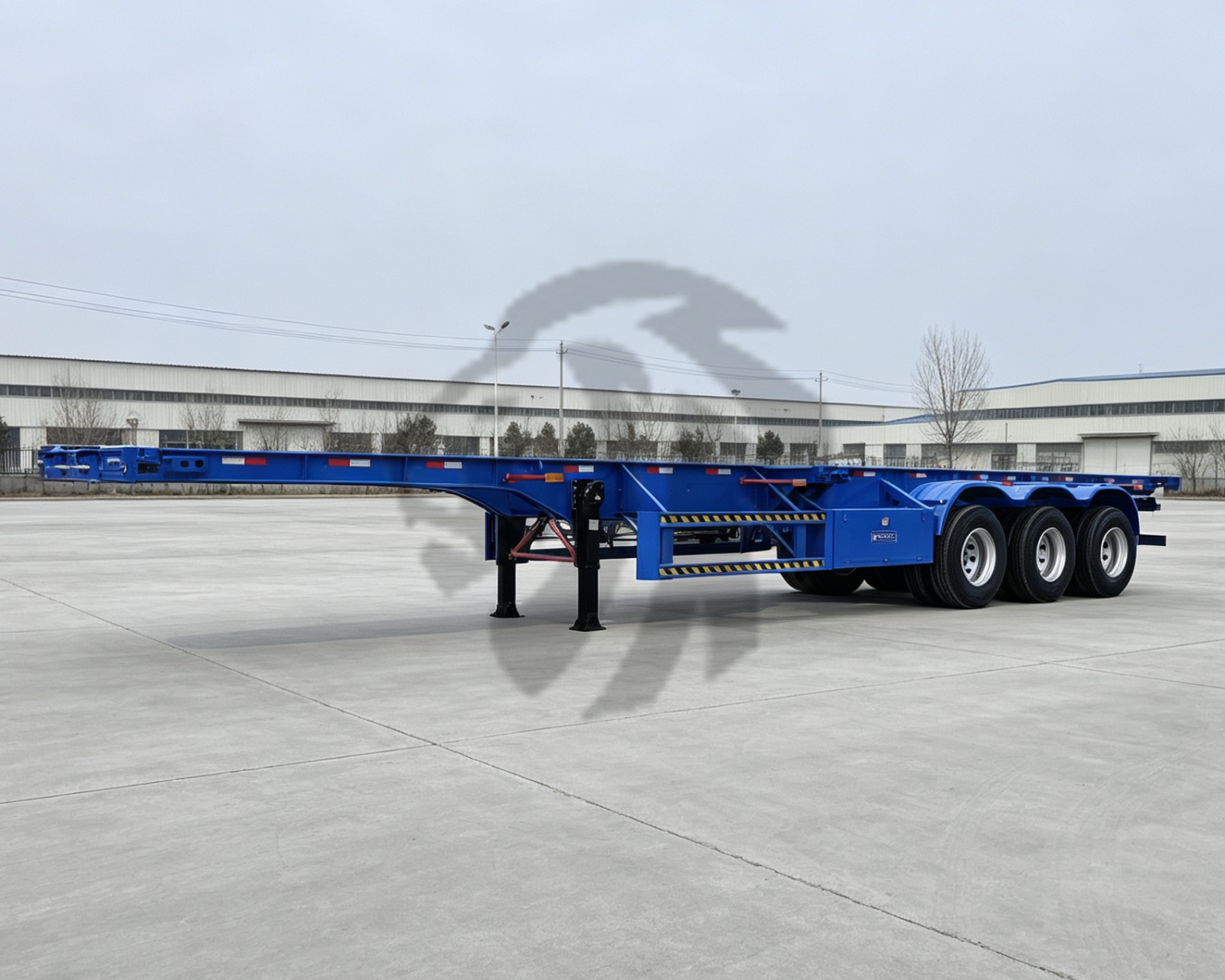

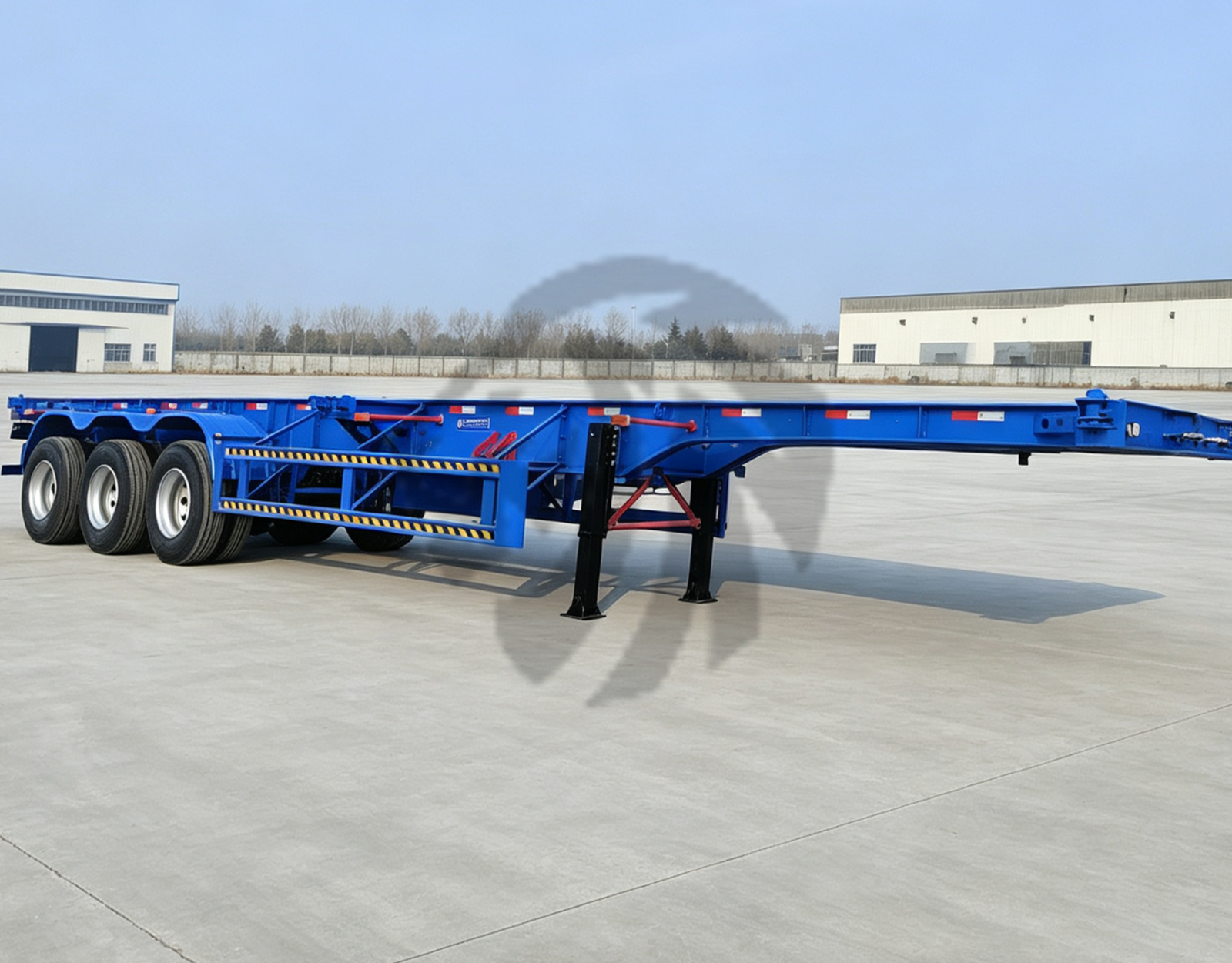

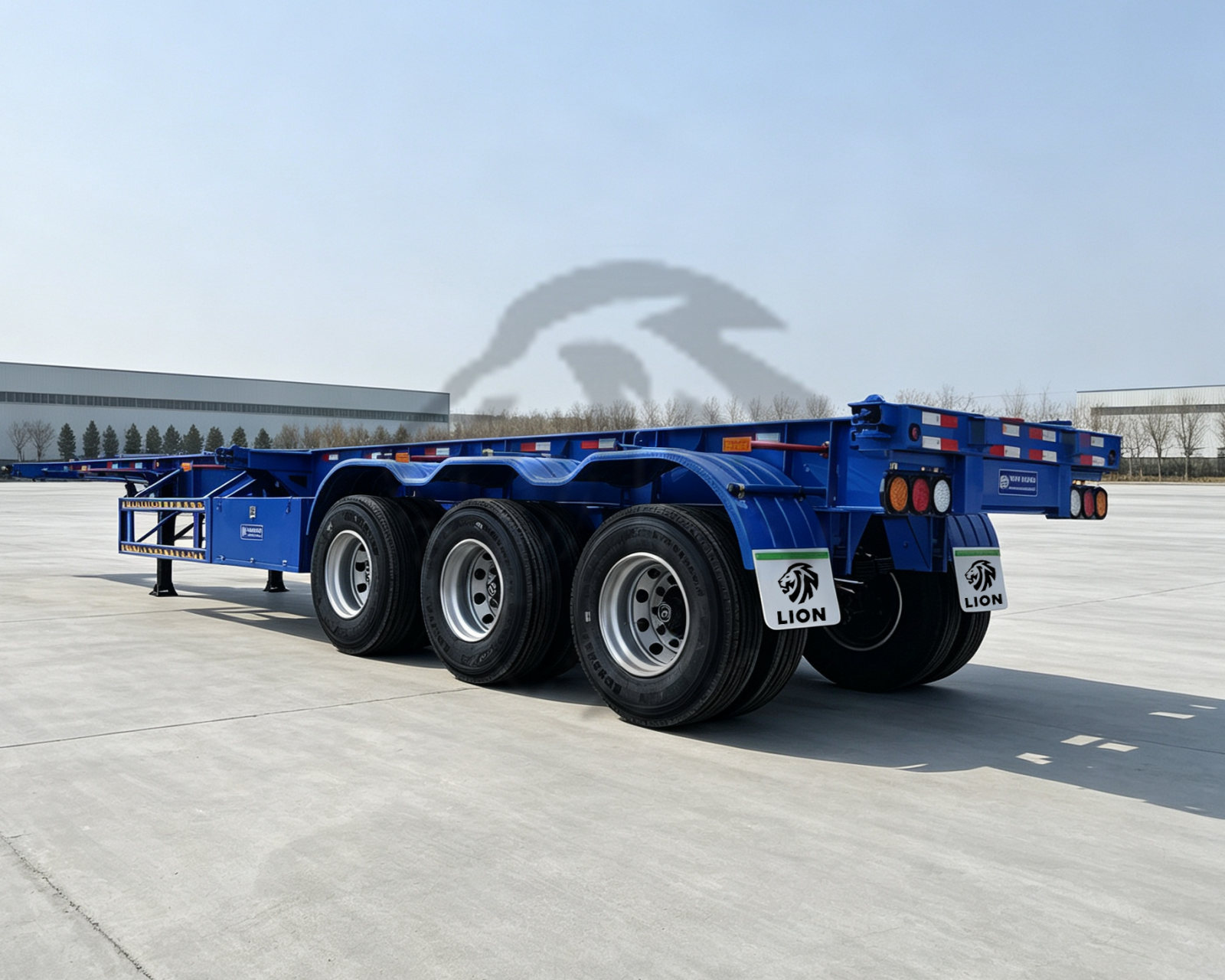

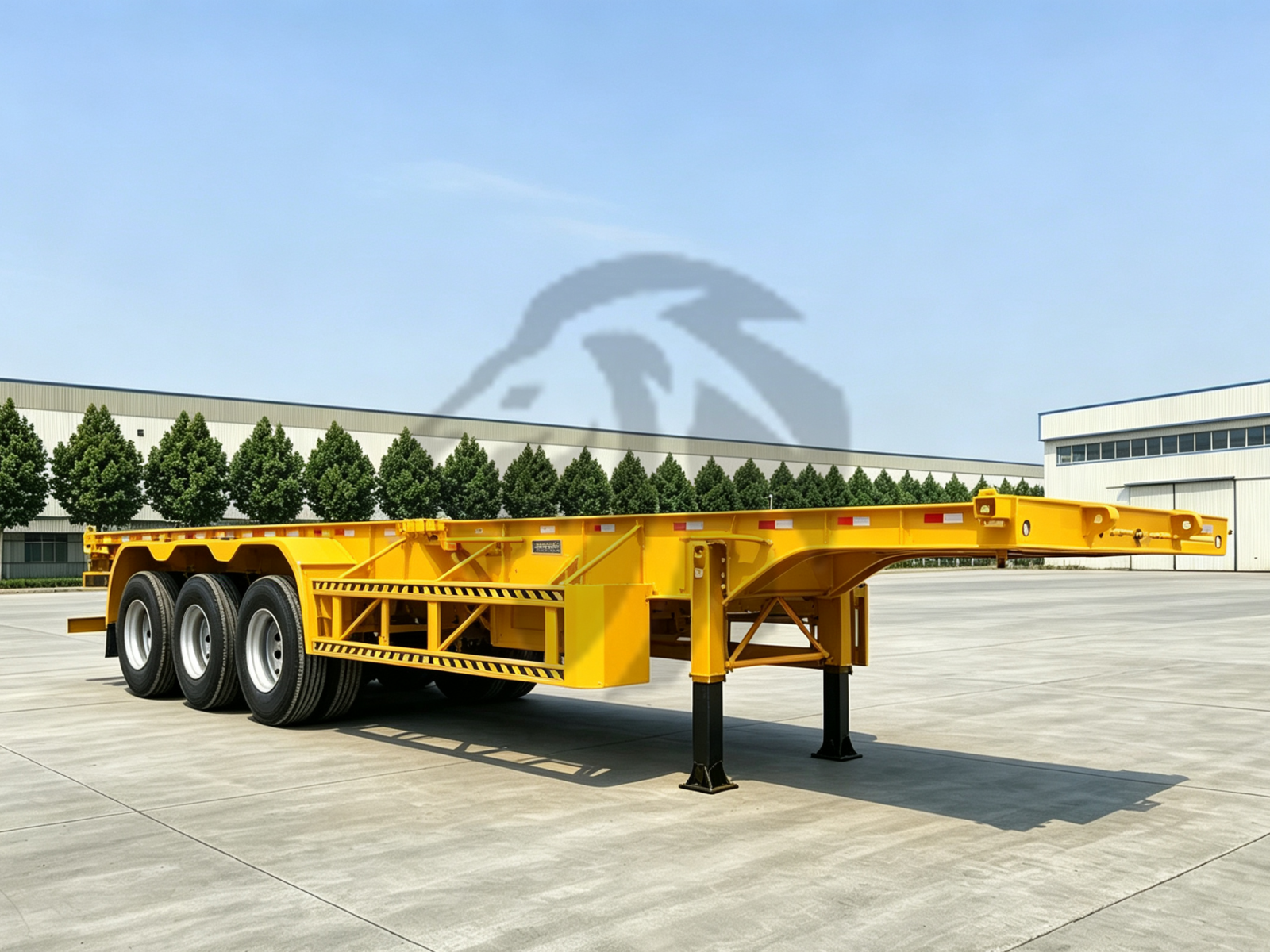

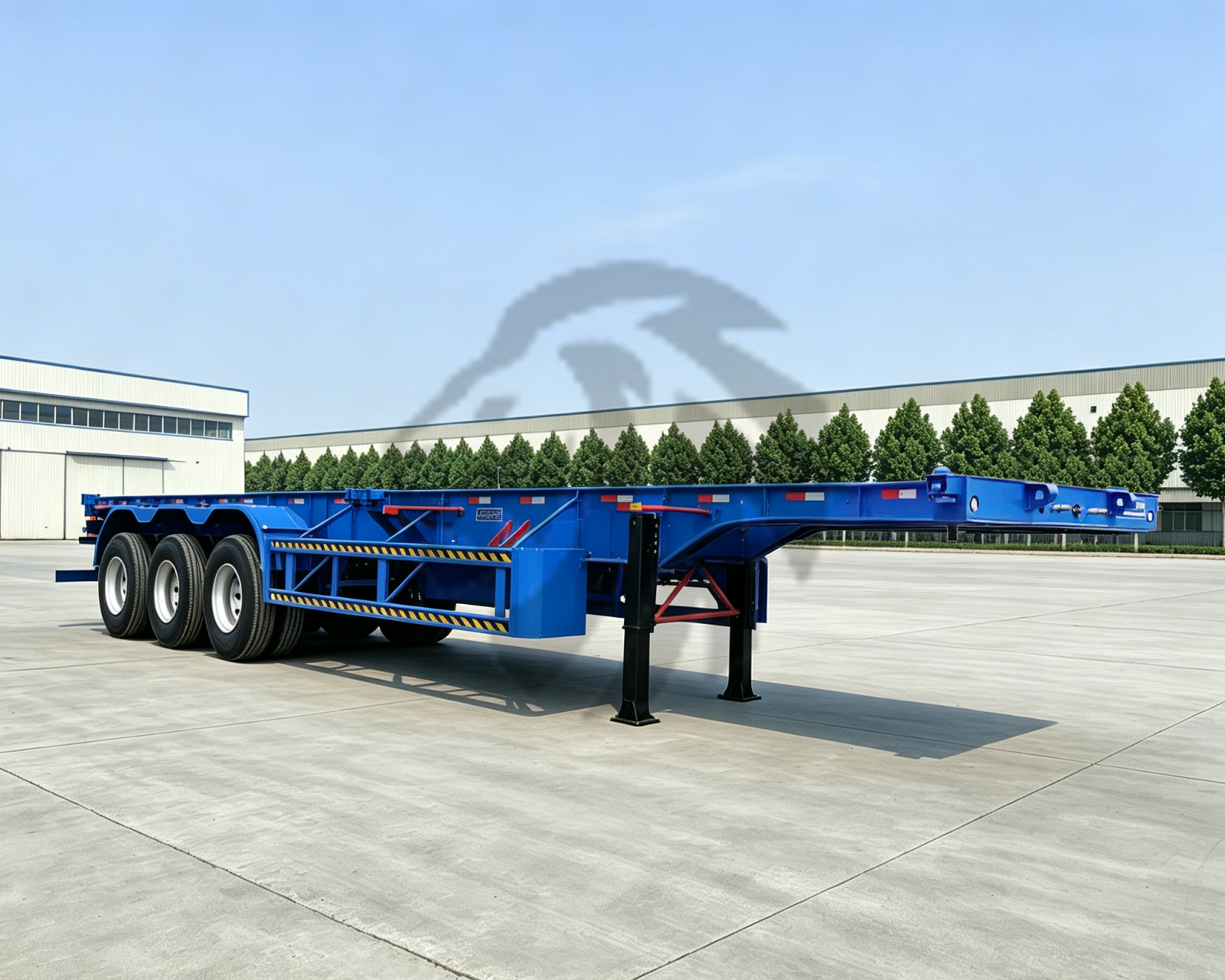

◉ 3 Axle Skeleton Semi Trailer

It is made of high strength steel, with high strength and stiffness, and can withstand the pressure of heavy cargo such as soybeans, steel and chemicals. The design of the skeleton structure makes the goods evenly distributed in the transportation process, effectively reduces the movement and shaking of the goods, and improves the transportation safety.

Product Parameters

Skeleton semi-trailer is mainly used in ships, ports, routes, roads, transfer stations, Bridges, tunnels, supporting multimodal transport logistics systems.

Specifically for all kinds of container transportation, customers can choose how many locks to replace according to their needs, and all accessories are selected by suppliers who have 20 years of experience in use, long-term reuse, with sufficient strength.

Features - Skeleton Semi Trailer

Highly robust structure steel with tensile and high load capacity, 40 ton loading capacity.

Heavy duty mechanical spring suspension for high loads requirements needs and handly bad road condition.

Length and width of skeleton avaiable custom made.

Air suspension and bogie suspension is an option.

8 units twist lock for carrying 20ft container and 40ft container.

20FT Skeleton Semi Trailer	40FT Skeleton Semi Trailer	45FT Skeleton Semi Trailer
Brand: Haiming	Brand: Haiming	Brand: Haiming
2Axles/3Axles	3Axles/4Axles	3Axles/4Axles
20ft Container Loading	1×40ft/2×20ft Container Loading	1×45ft/1×40ft/2×20ft Container Loading
Loading Capacity: 20-50 Tons	Loading Capacity: 30-80 Tons	Loading Capacity: 30-80 Tons
Type: Gooseneck or Tandem	Type: Gooseneck or Tandem	Type: Gooseneck or Tandem
Main Bean
Material: Q345/T700	Material: Q345/T700	Material: T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 14mm	Upper Plate Thickness: 10mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 6mm	Middle Plate Thickness: 5mm
Lower Plate Thickness: 12mm	Lower Plate Thickness: 16mm	Lower Plate Thickness: 10mm
Height: 500mm	Height: 500mm	Height: 420mm
Dimension
L×W×H: 7000mm×2480mm×1560mm	L×W×H: 12400mm×2480mm×1580mm	L×W×H: 13950mm×2500mm×1600mm
Axle
2/3 Axles×13 TonVEHCILE MASTER/FUWA/BPW	3/4 Axles×13 TonVEHCILE MASTER/FUWA/BPW	3/4 Axles×13/16 TonVEHCILE MASTER/FUWA/BPW
Tire
12R22.5 (8/12 Pieces)Linglong/ Triangle/DoubleCoin/Bridgestone	12R22.5 (12/16 Pieces)Linglong/ Triangle/DoubleCoin/Bridgestone	12R22.5 (12/16 Pieces)Linglong/ Triangle/DoubleCoin/Bridgestone
Rim
9.00×22.5 (8/12 Pieces)Steel/Aluminum	9.0×22.5 (12/16 Pieces)Steel/Aluminum	9.00×22.5 (12/16 Pieces)Steel/Aluminum
Leaf Spring
90mm×13mm×10 Pieces 90mm×16mm×10 Pieces	90mm×13mm×10 Pieces 90mm×16mm×10 Pieces	90mm×13mm×10 Pieces 90mm×16mm×10 Pieces
King Pin
#50 (2")/#90 (3.5")JOST/Other Brand	#50 (2")/#90 (3.5")JOST/Other Brand	#50 (2")/#90 (3.5")JOST/Other Brand
Landing Gear
28 Tons Two SpeedJOST/Other Brand	28 Tons Two SpeedJOST/Other Brand	28 Tons Two SpeedJOST/Other Brand
Twist Lock
4Sets	12Sets	12Sets
Painting
Electrophoresis Painting	Electrophoresis Painting	Electrophoresis Painting

Packaging And Transportation

FAQ

1. What kind of payment method can I choose?

(1) T/T (30% as deposit before production and 70% as balance before shippment)
(2) L/C 100% at sight
(3) Other payment methods can be negotiated
2. What is the shipping method and time?
Ro-Ro, containers, cargo holds, decks, vehicle frames, covered with waterproof tarpaulins, shipping time depends on shipping company
3. Can You Supply The Spare Parts Of This Truck Trailer?
A:Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
4. Can You Satisfy My Special Requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.
5. Are you a factory or a distributor?
We are a factory with 15 years of export experience
6. How to guarantee truck quality?

It comes with a three-year warranty; all components undergo inspection. We provide remote technical support as well as on-site after-sales service from our technicians.
